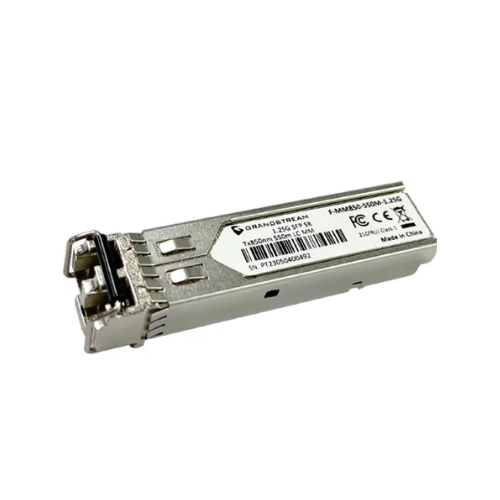

Grandstream F-MM850-550M-1.25G Multi-Mode SFP Fiber Module

Grandstream F-MM850-550M-1.25G Multi-Mode SFP Fiber Module — Short-Range Gigabit Fiber Built for Buildings, Data Centers, and Campus BackbonesNot every fiber link needs to span kilometers. Inside a multi-floor office building in Dhaka, a university campus data center in Rajshahi, a hospital network equipment room in Chattogram, or a corporate server room in Sylhet, the distances between switches, servers, and aggregation equipment are typically measured in tens or hundreds of meters — not kilometers. For these shorter, high-bandwidth intra-building and campus backbone connections, multi-mode fiber with an 850nm transceiver is the technically appropriate, cost-efficient choice — and the Grandstream F-MM850-550M-1.25G Multi-Mode SFP Fiber Module delivers exactly that capability with the build quality and compatibility standards that professional network deployments demand.Model designation is a precise technical description of what this module does. “MM” confirms multi-mode fiber operation. “850” specifies the 850nm VCSEL laser wavelength — the industry-standard transmission wavelength for multi-mode Gigabit fiber links. “550M” defines the maximum operating distance as 550 meters over OM2 multi-mode fiber. “1.25G” states the data rate: 1.25 Gbps, the line rate for standard Gigabit Ethernet SFP transceivers. Together, these parameters describe a 1000BASE-SX module optimized for the exact distance range that covers virtually every intra-building and short-range campus fiber application in Bangladesh’s commercial and institutional network infrastructure.850nm VCSEL — Vertical-Cavity Surface-Emitting Laser — is the light source technology of choice for multi-mode short-reach SFP transceivers, and for good reason. VCSEL-based transmitters are highly efficient, produce a tight, well-controlled beam that couples effectively into multi-mode fiber’s larger 50 or 62.5 micron core, offer fast modulation response at Gigabit data rates, and consume significantly less power than the edge-emitting laser diodes used in single-mode long-reach modules. The result is a transceiver that delivers reliable, consistent optical performance at 850nm across the full commercial operating temperature range without the thermal sensitivity issues that sometimes affect longer-wavelength modules in Bangladesh’s warm ambient conditions.LC duplex connector interface is the practical field standard for SFP fiber modules across Bangladesh’s professional cabling market. LC connectors deliver low insertion loss, are compact enough to fit the high-density patch panels common in modern equipment rooms, and are available in every fiber accessories channel nationwide — from pre-terminated OM2 LC-LC duplex patch cables to LC adapter panels and fiber distribution frames. Every fiber technician in the country already works with LC connectors daily, which means deploying the F-MM850-550M-1.25G into existing Grandstream switch infrastructure or new fiber plant requires no new tooling, no specialist termination skills, and no supply chain complications.550-meter reach over OM2 multi-mode fiber covers the overwhelming majority of intra-building and short campus fiber runs that network planners encounter in Bangladesh’s commercial construction sector. A typical 20-floor office tower in Dhaka’s Gulshan or Motijheel commercial districts involves vertical riser fiber distances from basement MDF to rooftop IDF of perhaps 80 to 100 meters. Horizontal campus backbone links between adjacent buildings in a university or hospital campus rarely exceed 200 to 300 meters. The F-MM850-550M-1.25G’s 550m headroom provides comfortable margin over these real-world distances, ensuring reliable link operation with adequate received optical power budget to absorb connector losses, splice losses, and patch panel insertion losses across the full fiber span without the link degrading to marginal performance levels.As a Grandstream-branded module, the F-MM850-550M-1.25G is specifically validated and recommended for use with Grandstream’s GWN series enterprise switches — including the GWN7800 and GWN7800P families — ensuring seamless recognition, stable DDM reporting, and reliable long-term operation within Grandstream’s Omni-managed network infrastructure. SFP MSA compliance also extends compatibility to third-party SFP-capable equipment from Cisco, Huawei, TP-Link, MikroTik, Ubiquiti, and other major vendors commonly deployed in Bangladesh’s enterprise and ISP environments, giving network engineers the flexibility to deploy these modules across mixed-vendor infrastructure without compatibility concerns.Hot-plug support allows the module to be installed into or removed from a live switch without powering down the host device — maintaining network uptime during routine maintenance, module replacements, and infrastructure expansion tasks on production networks. The metallic SFP housing provides EMI shielding that protects the sensitive VCSEL transmitter and PIN photodiode receiver circuitry from electromagnetic interference in the dense, multi-device equipment rooms where this module typically operates.Grandstream F-MM850-550M-1.25G SpecificationsSpecificationDetailsBrandGrandstreamModelF-MM850-550M-1.25GProduct Type1000BASE-SX Multi-Mode LC Duplex SFP TransceiverFiber ModeMulti-Mode Fiber (MMF)Transmission TypeDuplex (Two Fiber Strands — TX RX)Laser Type850nm VCSEL (Vertical-Cavity Surface-Emitting Laser)TX Wavelength850 nmRX Wavelength850 nmData Rate1.25 Gbps (Gigabit Ethernet)Network StandardIEEE 802.3 1000BASE-SXMaximum Reach (OM2)Up to 550 metersMaximum Reach (OM1 62.5µm)Up to 275 metersCompatible FiberOM1 (62.5/125µm), OM2 (50/125µm), OM3 (50/125µm)Connector TypeLC DuplexSFP MSA ComplianceYes — Multi-Source Agreement StandardDigital Diagnostic MonitoringYes (DDM / DOM supported)DDM ParametersTX Power, RX Power, Temperature, Voltage, Laser Bias CurrentHot-PluggableYesTX Disable FunctionSupportedLoss of Signal (LOS)SupportedSupply Voltage3.3V DCOperating Temperature0°C to 70°C (Commercial Grade)Storage Temperature-40°C to 85°CEnclosure MaterialMetallic (Low EMI)Primary Compatible EquipmentGrandstream GWN7800 / GWN7800P Series SwitchesMulti-Vendor CompatibilityTP-Link, Cisco, Huawei, MikroTik, Ubiquiti, D-Link, NetgearRoHS CompliantYesApplicationIntra-building fiber links, data center interconnects, campus backbone, server-to-switch connectionsRead MoreWhy You Buy Grandstream F-MM850-550M-1.25G Multi-Mode SFP Fiber ModuleGrandstream-Validated Compatibility Eliminates SFP Recognition Issues in GWN Switch Deployments — One of the most frustrating experiences for network engineers deploying third-party SFP modules in managed switches is the “unsupported transceiver” warning — a vendor lock-in mechanism that forces either a CLI override, a firmware workaround, or a costly OEM module purchase to resolve. The F-MM850-550M-1.25G is a Grandstream-branded, factory-validated module for the GWN switch series, which means it is recognized natively, reports DDM data accurately through the management interface, and operates without compatibility warnings or special configuration — delivering a seamless, professionally clean deployment experience for Grandstream network infrastructure across Bangladesh’s enterprise sector.550m OM2 Reach With Full Power Budget Headroom Covers Every Intra-Building Fiber Run in Bangladesh — Real-world multi-mode fiber links in Bangladesh’s commercial buildings and campus environments always include connection losses from patch panels, adapter connections, splice points, and cable bends that collectively consume optical power budget and reduce effective link distance. The F-MM850-550M-1.25G’s 550-meter maximum reach over OM2 fiber provides substantial power budget headroom above the 100 to 300-meter distances typical of intra-building and short campus links — ensuring the module operates well within its reliable performance envelope even after accounting for every real-world connector and splice loss in the fiber path, without the marginal receive power levels that cause intermittent link errors and difficult-to-diagnose performance issues.DDM Real-Time Monitoring Turns Reactive Fiber Troubleshooting Into Proactive Infrastructure Management — Multi-mode fiber link problems in intra-building networks — dirty LC connectors, degraded patch leads, bent fiber at cable management trays, or slowly failing VCSEL lasers — often manifest as intermittent errors or reduced throughput before they become complete link failures. The F-MM850-550M-1.25G’s Digital Diagnostic Monitoring streams real-time transmit power, receive power, laser temperature, bias current, and supply voltage data to the host switch’s management interface continuously, giving network administrators in Bangladesh’s enterprise IT teams the visibility to detect deteriorating optical performance early, schedule proactive maintenance during planned windows, and prevent the unplanned service outages that DDM-equipped transceivers consistently help avoid on monitored fiber infrastructure.FAQQ1: What is the difference between the Grandstream F-MM850-550M-1.25G and a single-mode SFP module, and how do I know which one my installation needs? The F-MM850-550M-1.25G is a multi-mode SFP module operating at 850nm with a maximum reach of 550 meters over OM2 multi-mode fiber — making it the right choice for intra-building links, data center interconnects, and short campus backbone runs where multi-mode fiber is already installed or being newly deployed; single-mode SFP modules operate at 1310nm or 1550nm over single-mode fiber with reach extending from 10 to 80 kilometers or beyond, making them appropriate for long-distance ISP backbone, metropolitan, and inter-campus links — the two fiber types and their corresponding SFP modules are not interchangeable, so the correct choice is determined by the fiber type already installed or planned for the specific link.Q2: Can the Grandstream F-MM850-550M-1.25G be used in non-Grandstream switches such as TP-Link, MikroTik, or Cisco equipment? Yes — the F-MM850-550M-1.25G is compliant with the SFP Multi-Source Agreement standard and IEEE 802.3 1000BASE-SX, which ensures compatibility with any MSA-compliant SFP host device; it operates reliably in switches and routers from TP-Link, Cisco, Huawei, MikroTik, Ubiquiti, D-Link, and Netgear in addition to its primary Grandstream GWN switch compatibility, though verifying against the specific host device’s SFP compatibility documentation before large-scale procurement remains recommended practice for professional network deployments across Bangladesh.NetworkingGrandstream F-MM850-300M-10G Multi-Mode SFP Fiber Module
