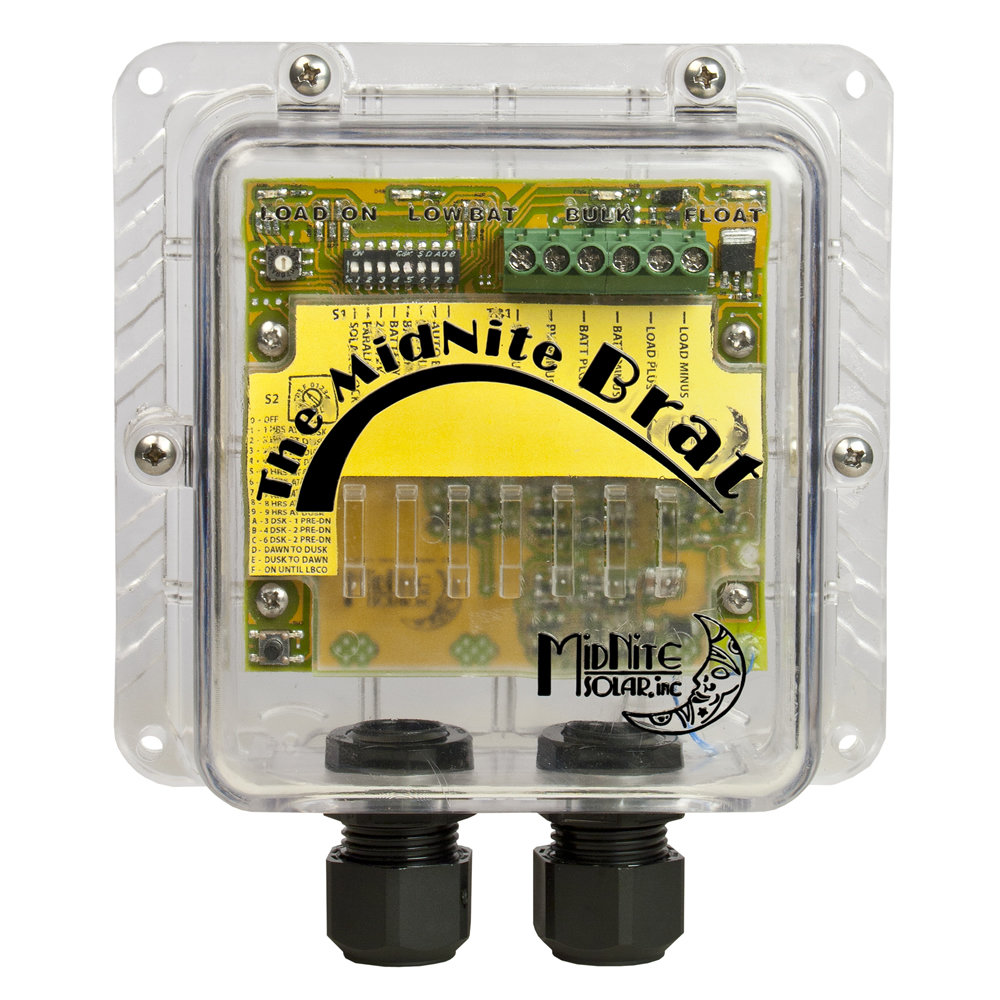

MidNite Solar 20A BRAT Charge Controller

Description Rain-proof out of the box, and supporting dead-battery charging and low-voltage load disconnect, The Brat is perfect for outdoor, marine, RV, and unattended remote applications. The Brat doesn’t skimp on features, including temperature-compensated charging, manual and 30-day automatic equalize, and at an affordable price too! Key Features and Benefits SELECTABLE CHARGING MODES – 20A charger with 10A load control, 30A charger without load control NO RELAYS, NO FANS, NO EXTERNAL HEAT-SINK TYPE 3R ENCLOSURE P/V INPUT VOLTAGE MAXIMUM – 60 volts LED’s –Four LED’s for Bulk, Float, Load On and Low Battery. Patterned blinking LED’s provide feedback about fault conditions. NOMINAL BATTERY VOLTAGE – 12 or 24V – Selectable 10 AMPS MAXIMUM LOAD CIRCUIT RATING LOAD CIRCUIT – A unique feature of the Brat is the load circuit. This versatile feature can be used for many purposes including running well pumps, electric fences, or billboard lights in remote areas. CUSTOMIZABLE LIGHTING CONTROLLER – The Brat sports a highly customizable 16 position rotary switch lighting controller. COMPACT DESIGN – We understand space can be a struggle in a boat or RV. With that in mind we kept the physical design of the Brat compact without sacrificing performance. SEALED FOR HARSH ENVIRONMENTS – All Brats are weather proof, sealed in a clear UV stabilized polycarbonate housing! (Type 3R/IP55). REPAIRABLE – Field repairable printed circuit board (by a qualified technician) BUILT IN ARLINGTON, WA – USA
